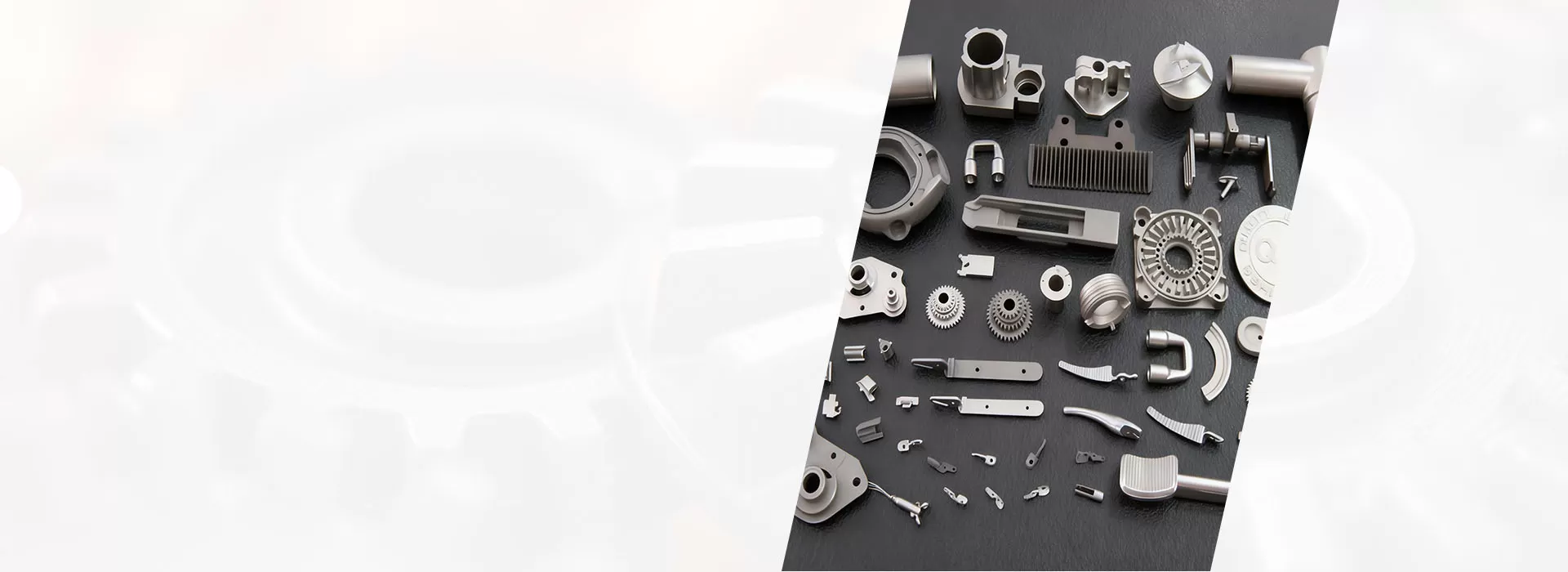

MIM Injection Molding Technology

Metal Injection Molding Process

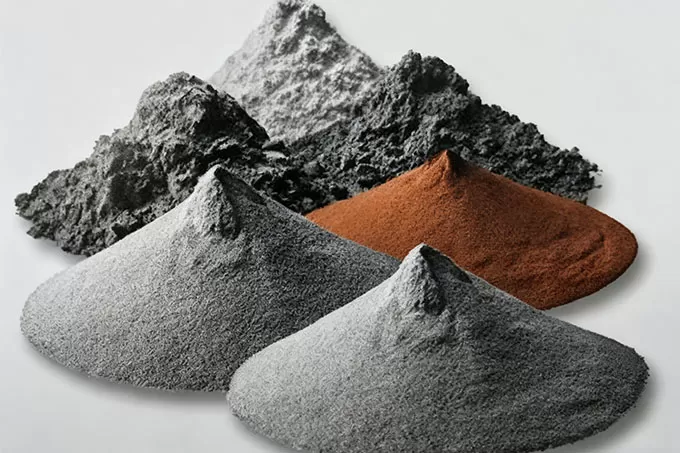

Metal Injection Molding (MIM) combines plastic injection molding's design flexibility with the performance of sintered metals. The process involves mixing fine metal powders with a thermoplastic binder to create a feedstock. This feedstock is then injection molded into complex-shaped "green" parts. Following molding, the binder is removed (debinding) and the parts are sintered at high temperatures. Sintering densifies the metal, resulting in high-strength, net-shape components.

Injection molding utilizes standard plastic injection molding machines. The pelletized feedstock is heated until molten and forcibly injected into a precision mold cavity. It is then cooled to form a solid "green" part, which accurately replicates the mold's geometry.

Advantages of MIM Injection Molding

Design Freedom

It produces highly complex, net-shape geometries with fine details, which are impossible or too costly for traditional machining or PM pressing.
Excellent Properties

Components achieve near-full density, resulting in superior mechanical properties, good corrosion resistance, and consistent performance comparable to wrought materials.
High Efficiency & Cost-Effectiveness

It is ideal for high-volume production of small, intricate parts, minimizing material waste and secondary machining operations, leading to significant cost savings.

MIM Process Applications Across Industries

Metal Injection Molding (MIM) is widely applied across diverse industries due to its ability to produce small, complex, high-precision components.

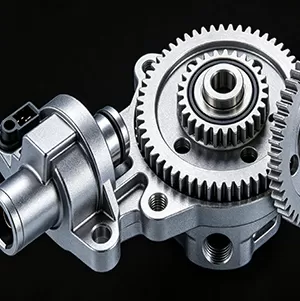

Automotive Industry

In the automotive industry, it manufactures fuel system parts, sensor components, and gear assemblies.

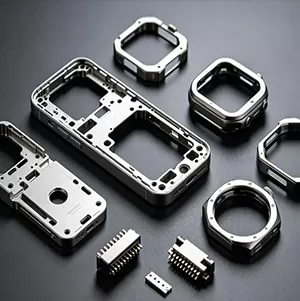

Consumer Electronics

In consumer electronics, it produces mobile phone structural parts, watch cases, and connector components.

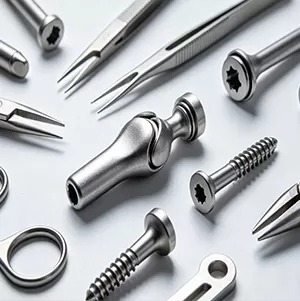

Medical Devices

In medical devices, it creates surgical instruments and implantable parts.

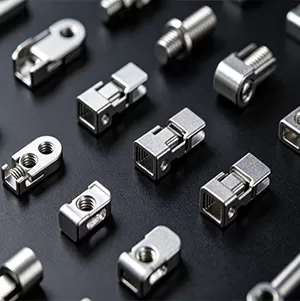

Hardware & Tooling Industry

It also serves the hardware & tooling industry with precision fasteners, clips, and small mechanical parts, delivering high efficiency and consistent quality.

Get in Touch

Your precision part challenges, our powder metallurgy solutions!


