Powder Metallurgy Process Technology

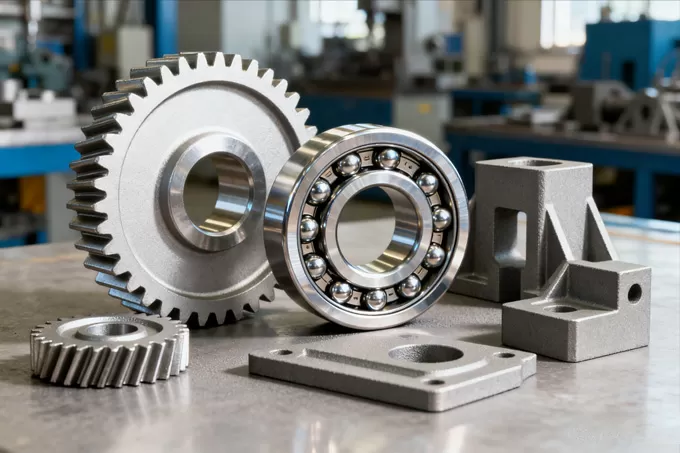

Powder Metallurgy Process

Powder Metallurgy (PM) is a manufacturing process for producing precision metal components. The basic steps involve mixing elemental or alloy powders, compacting the blend in a rigid die under high pressure to form a "green" part, and then sintering it in a controlled atmosphere furnace. Sintering bonds the powder particles, giving the part its final strength and properties. Secondary operations like sizing or heat treatment may follow to achieve specific characteristics.

Compaction involves pressing the powder blend in a precision die under high pressure, typically 100-800 MPa. This cold-welds the particles into a specific, rigid shape called a green compact, which has adequate handling strength.

Advantages of Powder Metallurgy

High Material Utilization & Cost-Effectiveness

PM is a near-net-shape process, generating minimal material waste (typically 95%+ utilization), which is crucial for expensive alloys. This significantly reduces overall part cost, especially for high-volume production.
Complex Geometries and Consistency

It can produce complex shapes that are difficult or impossible to achieve with machining or casting. The process ensures excellent dimensional consistency and repeatability from the first part to the millionth.
Controlled Porosity and Unique Materials

Porosity can be precisely controlled for applications like self-lubricating bearings or filters. PM also enables the creation of unique material combinations, such as copper-tungsten for electrical contacts or metal matrix composites.
Enhanced Properties and Sustainability

The microstructure from PM can yield superior properties like enhanced wear resistance. Furthermore, it is an energy-efficient and environmentally friendly process, minimizing scrap and reducing the need for secondary machining.

Applications of Powder Metallurgy

Automotive Industry

PM is crucial for producing high-strength, wear-resistant parts like engine connecting rods, transmission gears, camshaft sprockets, and oil pump gears, contributing to fuel efficiency and performance.
Aerospace & Defense

The technology manufactures critical components such as turbine engine blades, heat sinks, and missile guidance parts, leveraging its ability to process high-temperature alloys and create complex cooling channels.
Medical & Dental

Biocompatible materials like titanium and stainless steel are used via MIM to produce complex, sterile surgical instruments, orthopedic implants (knee & hip), and dental brackets with excellent surface finish.
Industrial & Consumer Goods

PM produces durable parts like bearings, filters, power tool gears, and lock components. Its capacity for creating self-lubricating bearings and magnetic parts is also widely utilized in various motors and sensors.

Related Powder Metallurgy Products

Coupling Yoke

Used in automotive emission systems, it's a standard powder metallurgy part pressed from stainless steel.

View More 

Catch Plate

Primarily used in automotive rearview mirror and clutch systems, and manufactured from iron-based material.

View More 

External Rotor

Hengji oil pump component designed exclusively for Brose and manufactured from iron-based powder metallurgy material.

View More 

Clutch Gear

Used in automotive clutch systems and manufactured from iron-based material.

View More 
